The Alemite Narrow Double Post Hose Reel 7370 provides the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications. This model contains a high-pressure swivel assembly. The reel is designed to dispense grease through 1/4 " ID two-wire braid delivery hose.

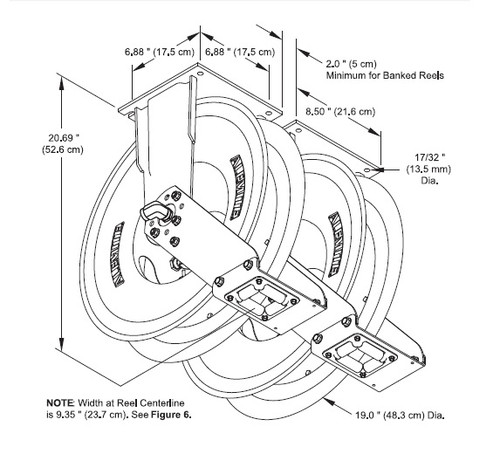

- Narrow Design – 8.5” wide, for better space utilization.
- Superior Performance – Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
- Anti-Lockout Design – Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
- Corrosion Resistant – Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
- Easy Installation and Maintenance – Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
- Durable – Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
- Adjustable and Versatile – 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
- Compatibility – Oil, grease, air, water, fuel, hydraulic fluid
- Part No.: 7370
- Inlet: 3/8 " NPSM Female
- Outlet (Swivel): 3/8 " NPSM Female
- Reel Maximum Pressure: 8000 psi/550 bar
- Delivery Hose Specification: NA
- Delivery Hose Outlet: NA
- Weight: 58.4 Lb.
