MEI Remote Mount A/C Condenser 44,500 BTU 12V - 10-9375

$3,539.06
$3,067.18
(You save $471.88 )
MPN:
10-9375
SKU:
77202911
Adding to cart… The item has been added
Customer Reviews
SKU:
77202911
UPC:
666501014436
Weight:
50.00 LBS
so_moq:
1
so_qi:
1
Estimated Special Order Ship Date:
Special Order (ships approximately 2 Weeks)
Special Order Available:
Increments of 1
QPO:
0
COO:
US
HarmonizeCode:
8415.82.0000
MPN:
10-9375

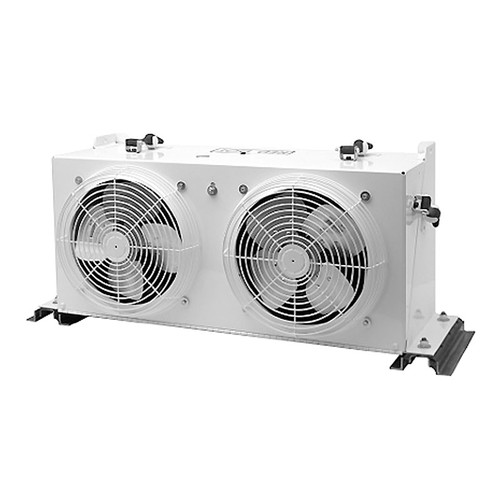

The MEI 10-9375 Remote Mount A/C Condenser is built to withstand the punisment of off-road environments. It features a voltage rating of 12 volts, 44,500 BTU/hr capacity and 1,500 CFM airflow. This rugged, heavy duty condenser unit also has 37.60" length, 15.25" height and 13.67-inches width.


PRODUCT SPECIFICATIONS:

  • MEI Part No.: 10-9375
  • Air Source: 10-9375
  • Truck Air: 50-9375
  • Description: Remote Mount A/C Condenser
  • Application: Add-on AC Unit Applications
  • Manufacturer: Red Dot
  • Model: R9730-0
  • Voltage: 12V
  • Length: 37.60"
  • Height: 15.25"
  • Width: 10.20"
  • Air Flow: 1500 CFM
  • Capacity: 44,500 BTU/Hr (11,214 kcal/h)
  • Current Draw: 26 amps @ 13.6 VDC (includes 4 amps for A/C clutch); 13 amps @ 27.2 VDC (includes 2 amps for A/C clutch)
  • Fans: Two 10" diameter bladed fans
  • Motors: Two single speed, long life sealed with pre-lubricated bearings
  • Weight: 74 lbs. (33.6 kg)
  • Refrigerant Type: R12/R134a
  • Mount Type: Universal
  • Mounting Type: Remote Mount


PRODUCT FEATURES:

  • Built to withstand the punishment of off-road environments
  • Rugged, heavy duty condenser with the tremendous capacity to support two cab air units
  • Rubber shock mounts absorb vibration while coated heavy guage steel encases the working components
  • Two sealed permanent magnet fan motors provide extended life and help to minimize down time
  • If service is necessary, rubber hood latches provide simple access to all serviceable components



Service Parts      Part No.
Condenser 6041
Fan Blade (2) 3810
Fan Guard (2) RD-5-3894-1
Fitting Bracket Assembly     RD-4-3804-0
Motor - 12v (2) 3512
Motor - 24v (2) 3514
Receiver Drier 7156
Shock Mount (2) 10-0065
Switch, Pressure, Binary 1500



Options:

  • 10-0065 - Shock Mount Assembly





Product Condition: NEW
