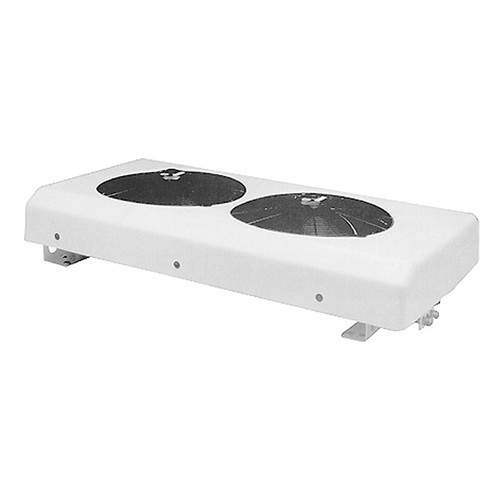

MEI Rooftop Mount A/C Condenser 45,200 BTU 12V - 10-9398

$3,185.75
$2,760.99
(You save $424.76 )
MPN:
10-9398
SKU:
77202922
Adding to cart… The item has been added
Customer Reviews
SKU:
77202922
UPC:
666501014498
Weight:
50.00 LBS
so_moq:
1
so_qi:
1
Estimated Special Order Ship Date:
Special Order (ships approximately 2 Weeks)
Special Order Available:
Increments of 1
QPO:
0
COO:
US
HarmonizeCode:
8415.82.0000
MPN:
10-9398

The MEI 10-9398 Rooftop Mount A/C Condenser features a 42.5" length, 10.5" height and 22.1" width. It offers amazing performance for a light weight dual fan power condenser. Its high capacity gives the installer a condenser to match with high performance evaporators or dual evaporator systems. This unit comes with a voltage rating of 12 volts, 45,200 BTU/hr capacity and 2,011 CFM airflow.

The latest motor technology allows for the lowest profile possible while maintaining high output.

PRODUCT SPECIFICATIONS:

  • MEI Part No.: 10-9398
  • Description: Rooftop Mount A/C Condenser
  • Application: Add-on AC Unit Applications
  • Manufacturer: Red Dot
  • Model: R4500-8-24
  • Voltage: 12V
  • Length: 42.5"
  • Height: 10.5"
  • Width: 22.1"
  • Air Flow: 2,011 CFM
  • Capacity: 45,200 BTU/Hr (11,340 kcal/h)
  • Current Draw: 30.3 amps @ 13.6 VDC
  • Motor/Fan: Two 16-inch diameter pancake motor assembly
  • Weight: 85 lbs. (38.6 kg)
  • Refrigerant Type: R134a
  • Mount Type: Roof Mount
Service Parts Part No.
Coil Assembly 77R-0990
Fan, Motor Assembly 12v (2)    3568MP
Fan, Motor Assembly 24v (2) 3569MP
Receiver Drier 7555
Relay 12v 1261
Relay 24v 1262
Switch, High Side 1464



Product Condition: NEW
