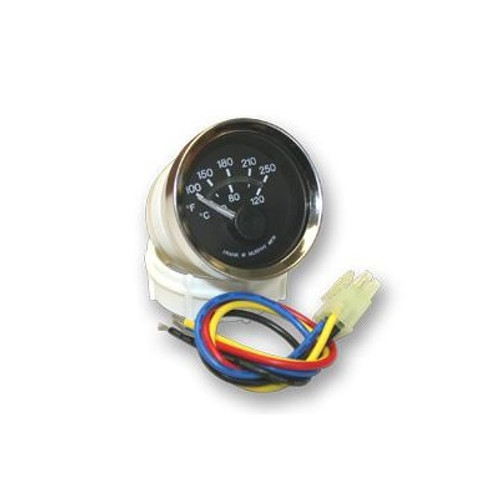

Murphy 250F Electric Temperature Gage 24 VDC - EG21T-250-24

The Murphy 250F/121C Electric Temperature Gage 24 VDC EG21T-250-24 takes the electric gage to new heights with proven state of the art technology and reliability. Features a weather sealed high impact polycarbonate lens with stainless steel bezel. Unit comes with plug-in wire connector for positive and easy connection.

FEATURES:

• Polished Stainless Steel
• EG Air Core movement design
• Technological improvements in lighting, accuracy in reading and wiring installation
• Assurance of highest reliability and service
• Environmentally sealed design
• Exceeds the rigid SAE J1810 standard
• Corrosion-resistant materials
• Desirable for marine and other environmentally sensitive applications
• Soft, non-glare dial and pointer illumination by “cold light” LED

PRODUCT SPECIFICATIONS:

• Part No.: EG21T-250-24

• Range Scale: 250°F (121°C)

• Power Input: 24 VDC
• Case: Polyester (PBT), impact and weather resistant with screw-on mounting clamp
• Bezel: Polished Stainless Steel

• Lens: Clear Polycarbonate and UV stabilized
• Air Core Movement: Silicon dampened pointer
• Dial: Black with white markings; back-lite (marking becomes red when illuminated
• Wiring: Plug connector with wire leads, 18 AWG (1.0 mm2), 8 in. (203 mm) long
• Operating Temperature: -40 to 185°F (-40 to +85°C)
• Storage Temperature: -77 to 185°F (-60 to 85°C)
• Over Voltage (Gage Movement): Withstands 200% of nominal system voltage for 5 min. Meets SAE J1810
• Reversed Polarity (Gage Movement): Withstands reversed battery terminal polarity indefinitely within operating temperatures
• Environment and Test: Meets SAE J1810 standards
