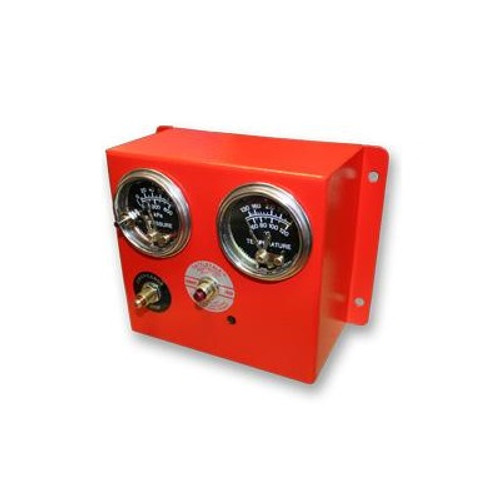

The Murphy 250F Swichgage Shutdown Panel with 10 Ft Capillary WD300LV-E10 is the ideal control solution for a wide variety of diesel engines that have the fuel shut-off solenoid built into the injection pump. This panel features a 6 foot capillary on the temperature gauge. The panel includes a low lube oil pressure swichgage, a high coolant/temperature swichgage, a 117PH magnetic switch and an emergency stop push button. Does not include a SV Fuel Valve.

For engines that have the fuel shut-off solenoid built into the injection pump. This model also applicable to battery ignition engines.



FEATURES:

  • Swichgage Instruments for Low OilPressure, High Coolant Temperature
  • Universal Design Ideal for Diesel Engines Without Fuel Solenoid Built Into the Injection Pump



PRODUCT SPECIFICATIONS:

  • Part No.: WD300LV-E10
  • Capillary: 10 Ft
  • Temperature Range: 250F
  • Low Lube Oil Pressure Swichgage: 0-100 psi (0-689 kPa) [0-6.89 bar] • 1/8 NPT process connection
  • High Coolant High Coolant: 130-250°F (54-121°C) • 48 in. (1.2 m) capillary • 1/2 NPT process connection
  • 117PH Magnetic Switch
  • PB128S Emergency Stop Push Button
  • Shipping Weight: 8 lbs. 8 ozs. (3.9 kgs.)
  • Shipping Dimensions: 8.5 x 5.25 x 5.5 in. (216 x 133 x 140 mm)
  • Panel Kit Includes: Low Lube Oil Pressure Swichgage •High Coolant/ Temperature Swichgage • 117PH Magnetic Switch • PB128S Emergency Stop Push Button



Product Condition: NEW
Murphy 250F Swichgage Shutdown Panel with 10 Ft Capillary WD300LV-E10
