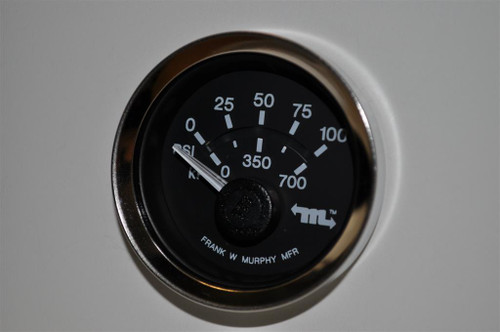

MurphyLink 100 PSI Engine Oil Pressure Gage 2 in. w/ Amp Mini Universal Connector and A-20 Type Stainless Steel Bezel - MLA20-A-100-A by Murphy

Availability:
Request Quote
MPN:
78700007
SKU:
77171961
Customer Reviews
SKU:
77171961
Weight:
0.34 LBS
so_moq:
1
so_qi:
1
NA:
NA
Special Order Available:
Increments of 1
QPO:
0
MPN:
78700007

The MurphyLink 100 PSI Engine Oil Pressure Gage 2" with Amp Mini Universal Connector and A-20 Type Stainless Steel Bezel - MLA20-A-100-A by Murphy is designed to display information transmitted by the Murphy Display and Diagnostic Module (MDDM) in a traditional analog format. Communication from the MDDM to these units is via an RS485 twisted pair proprietary serial link. The MurphyLink components are environmentally sealed, LED back lit (green) and it has a 2 inch (51 mm) diameter, plastic case.

The MurphyLink MLA20-A-100-A gage can be powered by 12 or 24 VDC systems.  For 24 VDC systems an MLVC2412 voltage regulator is required for back light power supply.



FEATURES:

  • 2 inch (51 mm) diameter gauge
  • LED Back Lighting
  • 100% Environmentally Sealed Case
  • Microprocessor-Driven for High Accuracy
  • Displays Critical Data Transmitted by the Murphy Display & Diagnostic Module (MDDM)
  • For Engine or Transmission Oil Pressure, Coolant or Transmission Temperature and Percent Load
  • Stainless Steel Bezel
  • Amp Mini Universal Connector



PRODUCT SPECIFICATIONS:

  • Part No.: MLA20-A-100-A
  • Range: 100 psi/700 kPa
  • Power Supply: Input Voltage: 12V (10-16 VDC min. & max. voltage). 24V (18-32 VDC min. & max. voltage)
  • Operating Current: (@ 14 VDC) = 27 mA min.; 50 mA max
  • Backlight: Voltage 12 to 14 VDC, Maximum Current: 30 mA. NOTE: MLVC2412 voltage regulator required for 24 VDC Systems
  • Input: RS485 data (MurphyLinkTM proprietary protocol)
  • Output: Analog Readout
  • Operating Temperature: -40° to 185°F (-40° to 85°C)
  • Storage Temperature: -76° to 185°F (-60° to 85°C)
  • Dial: White numerals over black background 90° sweep
  • Gage Accuracy: Better than ±1.5% of scale
  • Enclosure: Environmentally Sealed
  • Case and Clamp: Polyester (PBT)
  • Lens: Polycarbonate
  • Bezel: A-20 Type Stainless Steel
  • Dimensions: Please see image #4


Product Condition: NEW
MurphyLink Engine Oil Pressure Gauge 100 PSI/700 kPa with Stainless Steel Bezel MLA20-A-100-A
