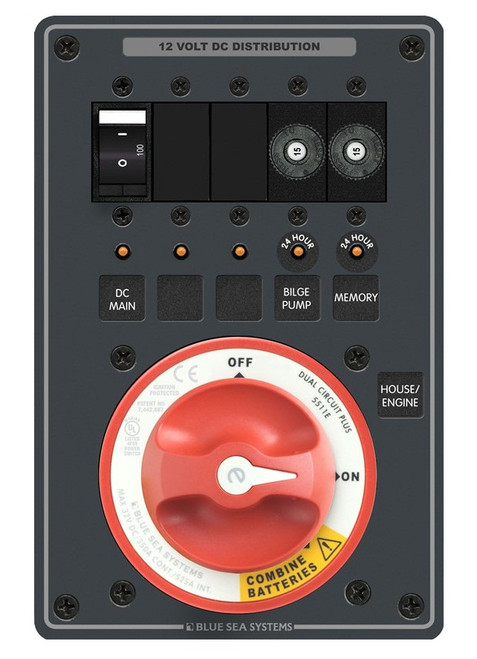

Blue Sea Systems Dual Battery Bank Management Panel 12/24V DC with 1 e-Series Dual Circuit Plus Battery Switch - 8690

Blue Sea Systems

$219.82
MPN:
8690
SKU:
77123098
Adding to cart… The item has been added
SKU:
77123098
Weight:
2.64 LBS
so_moq:
1
so_qi:
1
Estimated Special Order Ship Date:
Special Order (ships approximately 2 Weeks)
Special Order Available:
Increments of 1
QPO:
0
COO:
US
HarmonizeCode:
8537.10.9050
MPN:
8690

PRODUCT FEATURES:

  • Includes [1] e-Series, Dual Circuit Plus™ Battery Switch PN 5511e
  • Isolates Engine circuit from House circuit
  • Allows independent battery control
  • Allows emergency cross connect between isolated battery banks
  • The addition an Automatic Charging Relay (ACR) automates charging two battery banks
  • Protects electronics from sags and spikes caused by engine cranking
  • Ignition protected - Safe for installation in vehicles where gasoline vapors may be present, including boats
  • Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels
  • Meets UL 1500 and SAE J1171 external ignition protection requirements
  • Lifetime replacement warranty



PRODUCT SPECIFICATIONS:

  • Blue Sea Systems Part No.: 8690
  • Positions: 5
  • Nominal Voltage: 12V DC
  • Maximum Voltage: 24V DC
  • Continuous Rating: 350A
  • Intermittent Rating: 525A (5 min)
  • Cranking Rating 10 sec: 1000A
  • Cranking Rating 1 min: 750A
  • Height: 8.00in (203.2 mm)
  • Width: 5.25in (133.35 mm)
  • Depth: 3.50in (88.9 mm)
  • Weight: 2.64lb (1.2 kg)



INCLUDED:

Qty    PN      Product
1       5511e   e-Series Dual Circuit Plus™ Battery Switch
2       7056    Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
1       7549    C-Series Flat Rocker Circuit Breaker - Single Pole 100A



Product Condition: NEW
