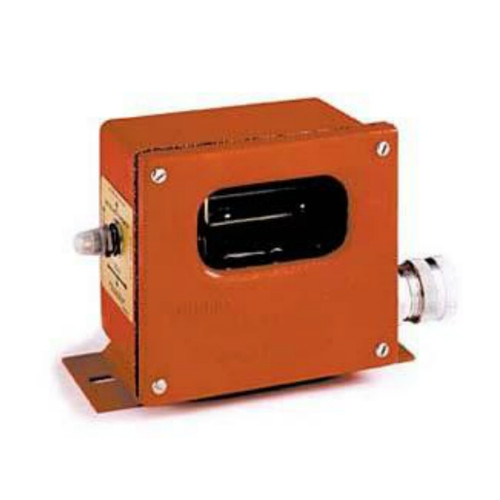

The VS2 Series switches are shock-sensitive mechanisms for shutdown of engine or electric motor powered equipment. It is designed to detect shock/vibration in three planes of motion. These fully adjustable switches use a magnetic latch to ensure reliable operation. Ideal for use on engines, pumps, compressors, heat exchangers and pumping units, the VS2 Series can be used where shut-down protection from damaging shock/vibration is desired. Switches are field adjustable to the sensitivity required in each application.
Pushing the reset button moves the tripping latch into a magnetically held position. A shock/vibration will move the magnet beyond this holding position, thus freeing the spring loaded tripping latch to transfer the contacts and shut down the machinery. The remote reset option includes a built-in electric solenoid which allows reset of tripped unit from a remote location.
PRODUCT SPECIFICATIONS:
- Murphy Part No.: VS2EXRB-15-D
- Series: VS2™ Series
- Normal Operating Temperature: -40° to 185°F (-40° to 85°C); For UL and CSA applications, applicable temperature specification is de-rated to -40° to 140°F (-40° to 60°C)
- Case: Explosion-proof aluminum alloy housing; designed to meet Class I, Division 1, Group B hazardous areas
- Certification: No third-party certification
- Snap Switch: DPDT Switch
- Remote Reset: 115 VAC Reset Coil
- Shipping Weight: 17 lb. 8 oz. (7.9 kg)
- Shipping Dimensions: 12 x 12 x 10 in. (305 x 305 x 254 mm)
Product Condition: NEW
