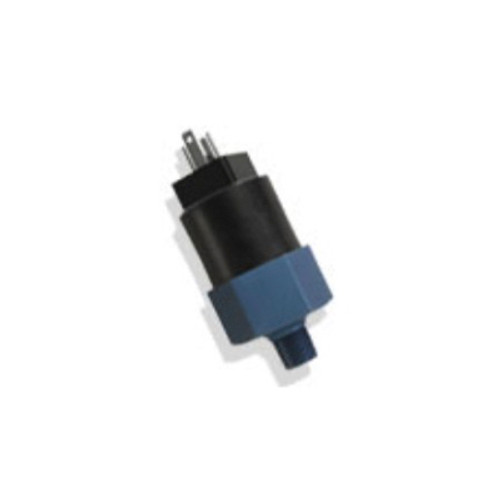

Nason Low Pressure Switch 15 PSI SPDT with 1/8 in.-27 NPT Male Media Connection - SM-2C-15F/WP

Nason

$48.65
MPN:
SM-2C-15F/WP
SKU:
77180536
Adding to cart… The item has been added
SKU:
77180536
Weight:
0.26 LBS
so_moq:
1
so_qi:
1
NA:
NA
Special Order Available:
Increments of 1
QPO:
0
MPN:
SM-2C-15F/WP

PRODUCT FEATURES:

  • Long-life elastomer diaphragm
  • High-quality snap-action switch
  • Factory preset
  • Available in a wide range of configurations
  • Economical
  • Pneumatic and hydraulic applications
  • NEMA 4, 13


PRODUCT SPECIFICATIONS:

  • Nason Part No.: SM-2C-15F/WP
  • Type: SM
  • Media Connection Modifier: Standard (Brass)
  • Media Connection: 1/8"-27 NPT Male
  • Circuit Form: SPDT (Single Pole Double Throw)
  • Fixed Set Point: 15 PSI
  • Set Point  Direction: Falling
  • Electrical Connection: Weather Pack (Female)
  • Wire Length Setting: Standard (6” Wire Length)
  • Diaphragm Material: Standard (Buna Nitrile 366y)
  • Contacts: Standard (5 A @125/250 VAC / 5 A @30 VDC)
  • Maximum Operating Pressure: 250 PSI (17 Bar)
  • Cycle Life: 1 Million
  • Operating Temperature: -20°F - +220°F
  • Unit Weight: .13 lbs.


Product Condition: NEW
