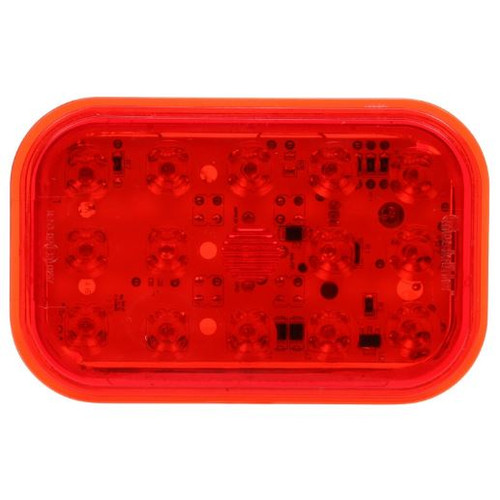

Truck-Lite 45 Series Red Rectangular 24 Diode LED Stop/Turn/Tail Light 12-24V European Approved - 45932R

Truck-Lite

Availability:
Request Quote
MPN:
45932R
SKU:
77177324
SKU:
77177324
Weight:
0.56 LBS
so_moq:
1
so_qi:
1
Estimated Special Order Ship Date:
Special Order (ships approximately 2 Weeks)
Special Order Available:
Increments of 1
QPO:
0
MPN:
45932R

PRODUCT FEATURES:

  • Direct pin-to-circuit board solders assure vibration resistant contacts, ECE approved for rear position/stop direction indicator and rear fog functions
  • Electronics completely sealed in epoxy to resist corrosion & moisture
  • Lamps are hardwired with standard 0.180 molded bullet connectors
  • LEDs are less susceptible to shock & vibration, Low current draw, leaving more power for other vehicle universal lighting products



PRODUCT SPECIFICATIONS:

  • Truck-Lite Part No.: 45932R
  • Brand: Truck-Lite
  • Series: 45 Series
  • Current Major: 0.28
  • Current Minor: 0.03
  • Voltage: 12|24
  • Warranty: Lifetime
  • Lighting Technology: LED
  • Number of Diodes/Bulbs: 24
  • Number of Wires: 3
  • Packaging Type: Standard
  • Std Carton Qty: 1
  • Lamp Connection: Hardwired
  • Plug Side One: Hardwired
  • Plug Side Two: .180 Bullet
  • Kit (Y/N): No
  • Lens Shape: Rectangular
  • Lens Color: Red
  • Mount/Trim Color: Black
  • Mount/Trim Material: PVC
  • Lens Material: Polycarbonate
  • Compliance Family: ECE
  • VMRS: 034-002-041
  • Diamond Shell (Y/N): No
  • Mount Type: Grommet Mount
  • Reflectorized (Y/N): No
  • Common Size: 3"x5"
  • Lens Width: 3.4 inch
  • Lens Height: 5.31 inch
  • Total Height: 5.31 inch
  • Total Width: 3.40 inch
  • Total Depth: 1.42 inch
  • Weight: 0.36 pound
  • Wire Gauge: 16
  • Product Type: Stop/Turn/Tail
  • UPC: 0735111097556


Product Condition: NEW
