The Alemite Narrow Double Post Hose Reel 7373 provides the rugged, reliable performance of an Alemite Reel, with a narrower design to fully optimize space efficiency. The dual arm design provides increased strength and stability in demanding off road applications. This model is designed for use on a lubrication truck to deliver fuel (such as diesel fuel, aircraft fuel, and gasoline) and lubricating oils
FEATURES:
- Narrow Design – 8.5” wide, for better space utilization.
- Superior Performance – Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
- Anti-Lockout Design – Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
- Corrosion Resistant – Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments.
- Easy Installation and Maintenance – Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy.
- Durable – Heavy metal arbor and dual arm design withstand extreme stress and eliminate breakage associated with non-metal and light weight metal arbors.
- Adjustable and Versatile – 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space.
- Compatibility – Oil, grease, air, water, fuel, hydraulic fluid
PRODUCT SPECIFICATIONS:
- Part No.: 7373
- Inlet: 3/4 " NPSM Male
- Outlet (Swivel): 3/4 " NPSM Female
- Reel Maximum Pressure: 300 psi/21 bar
- Delivery Hose Specification: NA
- Delivery Hose Outlet: NA
- Weight: 61 Lb.
Product Condition: NEW

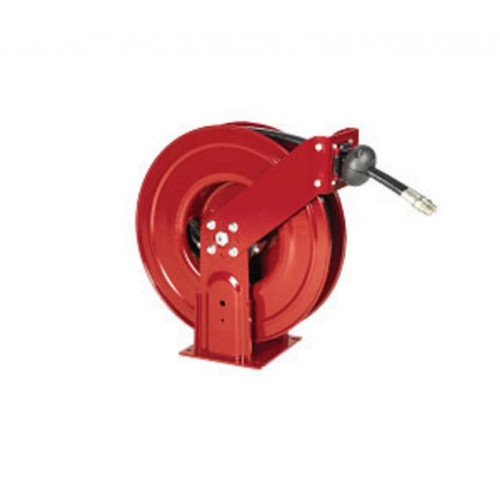

Alemite Narrow Double Post Hose Reel 7373
Note: Actual image not shown. Actual model is the bare reel only.
