- SKU:
- 77306575
- Weight:
- 0.25 LBS
- so_moq:
- 6
- so_qi:
- 6
- Estimated Special Order Ship Date:
- Special Order (ships approx 5-6 Weeks)
- Special Order Available:
- Increments of 6
- QPO:
- 0
- COO:
- MX
- HarmonizeCode:
- 8536.50.9065
- MPN:
- 58311-18-BP

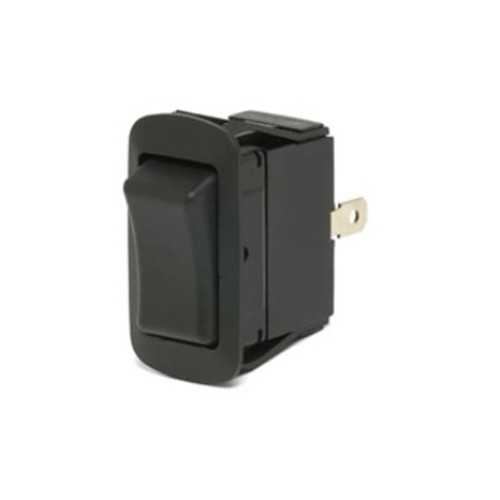

The 58311 (no pilot lights) series matches the 58312 & 58324 series (with LED pilot lights). Sealed to IP66 for water resistance (high pressure wash resistant.). Suitable for reversing the motion of permanent magnet motors.
Please note: This part is only available in increments of 6. Price is per unit.
PRODUCT SPECIFICATIONS:
- Cole Hersee Part No.: 58311-18-BP
- Package Type: Bubble Pack
- Switch Type: Rocker
- Description: Universal Weather-Resistant Rocker Switch
- Circuitry: DPDT
- Contacts: Silver
- Housing: Plastic Black
- Up Position: Momentary On
- Center Position: Off
- Down Position: Momentary On
- Terminals: 4 Nickel-Plated Brass Blades
- Actuator Material: Plastic
- Actuator Type: Rocker Button
- Actuator Color: Black
- Actuator Imprint: None
- Illuminated: No
- Bezel Type: Plastic Black
- Bezel Size: .965(24.51mm) x 1.81(45.97mm)
- Mounting: Panel snap-in
- Panel Thickness: .093 (2.37mm) to .187 (4.76mm)
- Mounting Hole: 1.45 x .830"
- Mounting Hole: 36.83mm x 21.08mm
- Electrical Rating: 25 A at 12 V DC 15 A at 24 V DC
