- SKU:
- 77306015
- Weight:
- 0.26 LBS
- so_moq:
- 1
- so_qi:
- 1
- Estimated Special Order Ship Date:
- Special Order (ships approximately 5-6 weeks)
- Special Order Available:
- Increments of 1
- QPO:
- 0
- MPN:
- WX-11C-2525G/HRAU152

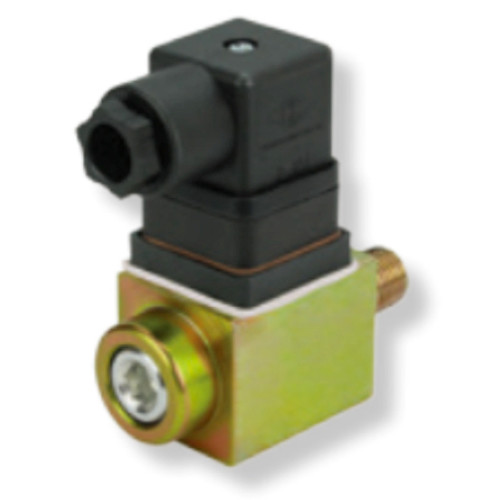

PRODUCT FEATURES:
- Long-life elastomer diaphragm
- High-quality snap-action switch
- Field adjustable
- Compact design
- Available in a wide range of configurations
- Proven in the most demanding mobile hydraulic applications
- NEMA 4, 13
PRODUCT SPECIFICATIONS:
- Nason Military Part No.: 5930-01-604-6074
- Nason Part No.: WX-18B-1750R/HH (Replaces Part No.: WX18B1750RHH)
- Type: WX
- Media Connection Modifier: Standard (Zinc Plated Steel)
- Media Connection: 7/16-20 SAE J1926 O-Ring ADJ
- Circuit Form: SPST-NC (Single Pole Single Throw - Normally Closed)
- Adjustment Range: 50 - 1750 PSI
- Set Point Direction: Rising
- Electrical Connection: (DIN43650A (Plug Only)
- Wire Length Setting: N/A
- Diaphragm: Standard (Buna Nitrile 366y)
- Contacts: Standard (5A @ 125/250VAC / 5A @ 30VDC)
- Maximum Operating Pressure: 5000 PSI (344 Bar
- Cycle Life: 1 Million
- Operating Temperature: -20°F - +220°F
- Unit Weight: .80 lbs
Product Condition: NEW
