- SKU:
- 77136676
- Weight:
- 0.12 LBS
- so_moq:
- 10
- so_qi:
- 10
- NA:
- NA
- Special Order Available:
- Increments of 10
- QPO:
- 0
- COO:
- MX
- HarmonizeCode:
- 8536.50.9065
- MPN:
- 24-394P

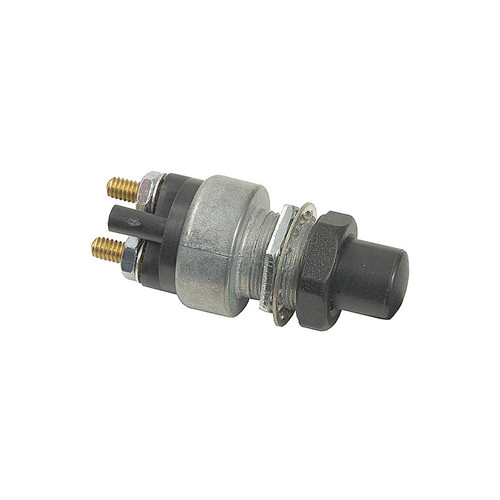

The Pollak Momentary Push Switch 24-394 is a high-quality momentary push switch that features a black face nut with 3/8" long and #8-32 threaded terminals.
PRODUCT SPECIFICATIONS:
- Pollak Part No.: 24-394P
- Detail: With Black Face Nut
- Circuitry: Normally Off (Push to On)
- Position: 2-Position, On-Off
- Current/Voltage: 40 Amps at 24V, 60 Amps at 12V
- Operation: 50,000 Cycles
- Mounting Stem: 5/8-32 thread, accommodates panels up to 1/4" thick
- Housing: Zinc die-cast
- Contacts: Silver-plated
- Terminals: Brass
- Flush terminal screws in molded insulator
- Housing rolled over insulator to seal out dust and moisture
- Mounting stem 5/8" long, 5/8" diameter
- Hex back nut
- Black face nut 3/8" long, 8-32 threaded terminals
- Black molded plunger
- Overall length: 1-13/16"
- Housing diameter: 15/16"
Product Condition: NEW
