- SKU:
- 77223312
- Weight:
- 0.11 LBS
- so_moq:
- 1
- so_qi:
- 1
- Estimated Special Order Ship Date:
- Special Order (ships approximately 2 Weeks)
- Special Order Available:
- Increments of 1
- QPO:
- 0
- MPN:
- APM-AMP-APO

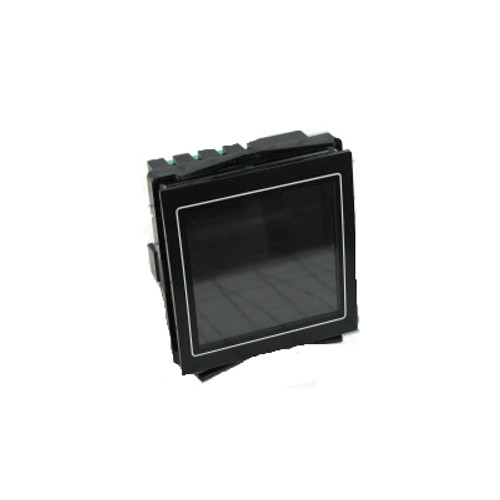

The Trumeter APM Series Positive LCD Amp Meter APM-AMP-APO is the most visible, easy to use, multi‑format, programmable panel meter on the market; providing you with the highest level of accuracy and an immediate visual indication of your critical parameters. This model has been specifically designed for engineers requiring a more effective way of monitoring and displaying data. This product is a cost‑effective alternative to the traditional moving coil and expensive digital panel meters.
PRODUCT SPECIFICATIONS:
- Large 4 Digit Display
- 40 segment bar graph display
- Two independent alarm set-points
- User adjustable backlight brightness and color
- Separate display area for annunciations, custom messages and alarms
PRODUCT SPECIFICATIONS:
- Part No.: APM-AMP-APO
- Type (Engineering Units): AC/DC Amperage
- Max Input Signal: 5
- Display Type: LCD
- Display Digits: 4
- Alarm Indicators: 2 LCD
- Power Supply: 12~24 VAC/DC
- Output: 4-20mA
- Accuracy %: 0.1 Percent
- Operating Temperature: 14 to 140 Degrees F
- Degree of Protection: IP65
- Approvals: UL;CUL;CE
- H x W x D (in.): 2.2 x 2.95 x 3.05
- Net Weight: 5.2 OZ
- Gross Weight: 6.32 OZ
Product Condition: NEW
Trumeter Frequency Meter APM-AMP-APO
